Item Sales Info
Part Number: S11952
/
Vendor ID Number: 27
/
Custom:
7 Watt; 18 Inch; T8 Linear LED; Medium Bi-Pin G13Base; 6500K; 50000 Average Rated Hours; 770 Lumens;
12
18
Pack Of: 1
260 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification

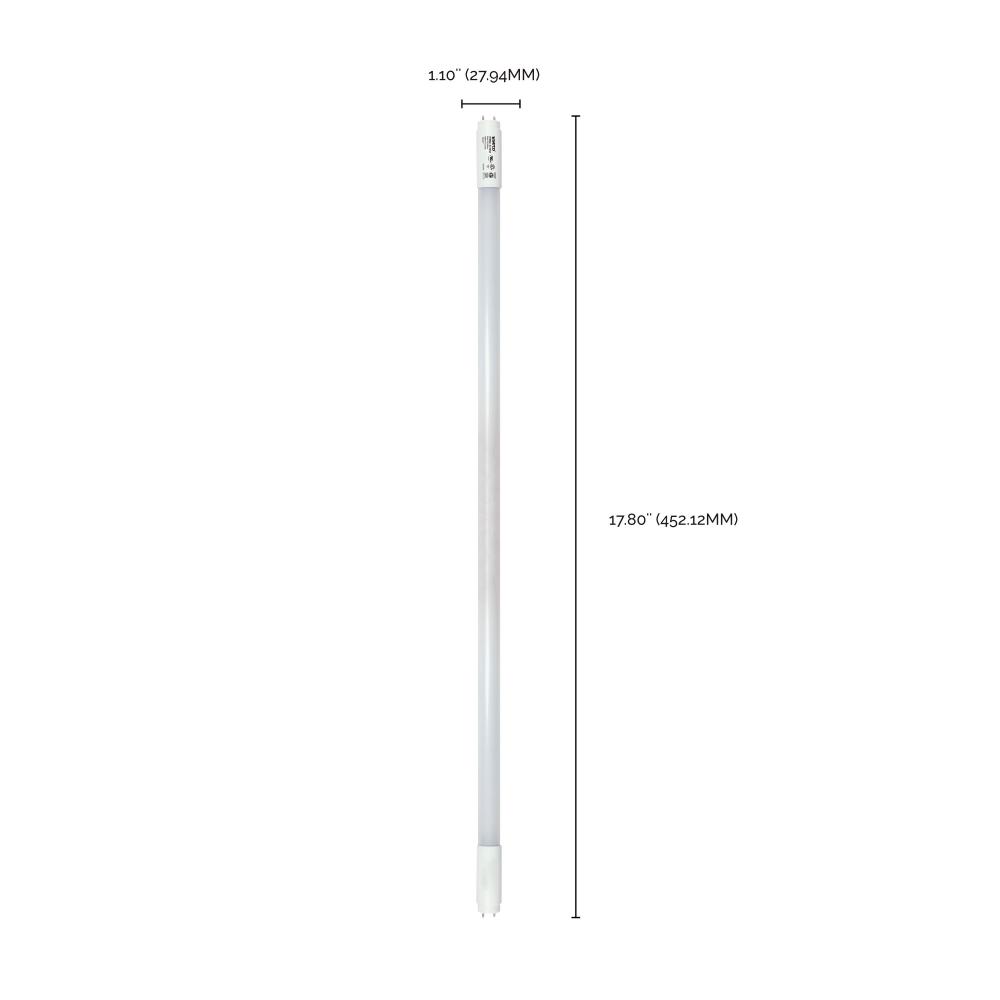

Dimensions
Width: 1.10"
Product Overview
7 Watt; 18 Inch; T8 Linear LED; Medium Bi-Pin G13Base; 6500K; 50000 Average Rated Hours; 770 Lumens; Type B Ballast Bypass
Product Availability
-
Item appears to be in stock and ready to ship.
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
White /vendors/vendorImages white.jpg
Style:
Traditional
Finish Family:
White /vendors/vendorImages white.jpg
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
6500K
Bulb Shape:
T8
Diameter:
1.1
EA Length:
18
Harmonized Codes:
8539.52.0051
Length:
17.8
Lumens:
770L
Shap Carton Width:
1.1
Ship Carton Height:
1.1
Ship Weight:
0.29
Warranty:
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight:
0.22
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
160
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0126
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Daylight
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
110.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
Lawful for sale in California
Feature 2:
For use Indoors
Feature 3:
Operating Temperature: -25C (-13F) to a maximum of +40C (+104F)
Feature 4:
Non-Dimmable
Feature 5:
Minimum Order Quantity 25
Flourescent Equivalent:
15W
Housing Color:
White
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Single Ended;Double Ended
Lamp Filament:
LED
Lens Finish:
Frost
Lens Material:
Glass
Location Rating:
Damp
Long Description:
Satco's S11952 7-watt, 18 inch, LED T8 bulb is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 160 degree beam spread and a medium bi pin base. This frosted bulb is versatile and delivers 50,000
Material:
Glass / Plastic
Nominal Length:
18
NSF Approved:
ETL Sanitation listed (conforms to NSF)
Operating Frequency:
50/60Hz
Operating Temp:
-25C (-13F) to +40C (+104F)
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
Satco's 7-watt, 18 inch, LED T8 bulb is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 160 degree beam spread and a medium bi pin base. This frosted bulb is versatile and delivers 50,000 hours o
SDS class:
LED_Lamp
Shatter Proof Text:
PET Coated
Short Description:
7T8/LED/18-865/BP
Style:
Utility
Surge Protection:
Built-in-surge protection - 0.7KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
25%
Wattage Selectable:
No
Watts:
7W
